產品介紹
|
| 鎢鋼螺旋銑牙刀—ISO【標準型】 (A804)JFSL /HJ |
| 產品特色 | 適合大量同規格生產，螺紋規格多，使用方便，2倍徑內深度的工件，加工效率高 | |
| |
|
| 產品規格表 |
.png)
|

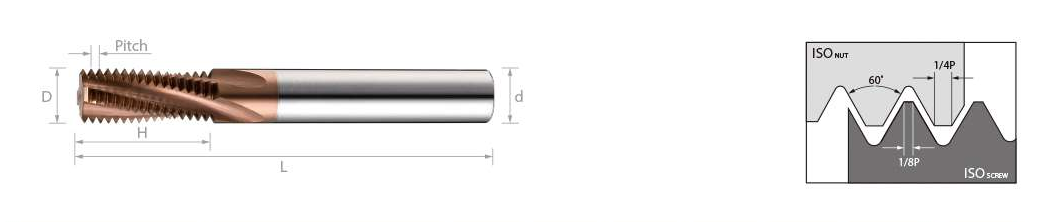

鎢鋼全牙公制內螺紋銑刀(ISO/標準型)
|
|
項次
|
產品編號
|
產品
|
規格
|
外徑
|
螺距
|
刃長
|
刃數
|
柄徑
|
總長
|
建議
|
In
|
|
類別
|
(d)
|
(P)
|
(H)
|
(T)
|
(D)
|
(L)
|
售價
|
Stock
|
|
1
|
JFSL015504-SN
|
A804
|
M2*0.4
|
1.55
|
0.4
|
4
|
3
|
4
|
50
|
1900
|
|
|
2
|
JFSL02045-SN
|
M2.5*0.45
|
2
|
0.45
|
5
|
3
|
4
|
50
|
1900
|
|
|
3
|
JFSL0240050-SN
|
M3*0.5
|
2.4
|
0.5
|
6
|
4
|
4
|
50
|
1900
|
●
|
|
4
|
JFSL0315070-SN
|
M4*0.7
|
3.15
|
0.7
|
8
|
4
|
4
|
50
|
1900
|
●
|
|
5
|
JFSL0400050-SN
|
M5*0.5
|
4
|
0.5
|
10
|
4
|
4
|
50
|
1900
|
|
|
6
|
JFSL04075-SN
|
M5*0.75
|
4
|
0.75
|
10
|
3
|
4
|
50
|
1900
|
|
|
7
|
JFSL0400080-SN
|
M5*0.8
|
4
|
0.8
|
10
|
4
|
4
|
50
|
1900
|
●
|
|
8
|
JFSL048075-SN
|
M6*0.75
|
4.8
|
0.75
|
12
|
3
|
6
|
60
|
2000
|
|
|
9
|
JFSL0480100-SN
|
M6*1.0
|
4.8
|
1.0
|
12
|
4
|
6
|
60
|
2000
|
●
|
|
10
|
JFSL06050-SN
|
M8*0.5
|
6
|
0.5
|
16
|
4
|
6
|
60
|
2000
|
●
|
|
11
|
JFSL06075-SN
|
M8*0.75
|
6
|
0.75
|
16
|
4
|
6
|
60
|
2000
|
●
|
|
12
|
JFSL0610-SN
|
M8*1.0
|
6
|
1.0
|
16
|
3
|
6
|
60
|
2000
|
●
|
|
13
|
JFSL0600125-SN
|
M8*1.25
|
6
|
1.25
|
16
|
4
|
6
|
60
|
2000
|
●
|
|
14
|
JFSL0810-SN
|
M10*1.0
|
8
|
1.0
|
20
|
4
|
8
|
60
|
2500
|
●
|
|
15
|
JFSL08125-SN
|
M10*1.25
|
8
|
1.25
|
20
|
4
|
8
|
60
|
2500
|
|
|
16
|
JFSL0800150-SN
|
M10*1.5
|
8
|
1.5
|
20
|
4
|
8
|
60
|
2500
|
●
|
|
17
|
JFSL1005-SN
|
M12*0.5
|
10
|
0.5
|
24
|
4
|
10
|
75
|
3000
|
|
|
18
|
JFSL10075-SN
|
M12*0.75
|
10
|
0.75
|
24
|
4
|
10
|
75
|
3000
|
●
|
|
19
|
JFSL1010-SN
|
M12*1.0
|
10
|
1.0
|
24
|
4
|
10
|
75
|
3000
|
|
|
20
|
JFSL10125-SN
|
M12*1.25
|
10
|
1.25
|
24
|
4
|
10
|
75
|
3000
|
|
|
21
|
JFSL1015-SN
|
M12*1.5
|
10
|
1.5
|
24
|
4
|
10
|
75
|
3000
|
|
|
22
|
JFSL10175-SN
|
M12*1.75
|
10
|
1.75
|
24
|
4
|
10
|
75
|
3000
|
|
|
23
|
JFSL1210-SN
|
M14*1.0
|
12
|
1.0
|
28
|
4
|
12
|
75
|
3300
|
●
|
|
24
|
JFSL1215-SN
|
M14*1.5
|
12
|
1.5
|
28
|
4
|
12
|
75
|
3300
|
●
|
|
25
|
JFSL1220-SN
|
M14*2.0
|
11.6
|
2.0
|
28
|
4
|
12
|
75
|
3300
|
●
|
|
26
|
JFSL1415-SN
|
M16*1.5
|
14
|
1.5
|
32
|
4
|
14
|
100
|
4200
|
|
|
27
|
JFSL1320-SN
|
M16*2.0
|
13
|
2.0
|
32
|
4
|
14
|
100
|
4200
|
|
|
28
|
JFSL14825-SN
|
M18*2.5
|
14.8
|
2.5
|
38
|
4
|
16
|
100
|
4600
|
|
|
29
|
JFSL1610-SN
|
M20*1.0
|
16
|
1.0
|
38
|
4
|
16
|
100
|
4600
|
|
|
30
|
JFSL1615-SN
|
M20*1.5
|
16
|
1.5
|
38
|
4
|
16
|
100
|
4600
|
|
|
31
|
JFSL1625-SN
|
M20*2.5
|
16
|
2.5
|
42
|
4
|
16
|
100
|
4600
|
|
|
32
|
JFSL1630-SN
|
M24*3.0
|
16
|
3.0
|
42
|
4
|
16
|
100
|
4600
|
|
|
| 產品內容 |
